Disc Mount Fixtures, Dummy Axles and Skewers
Post Mount Disc Brake Fixture

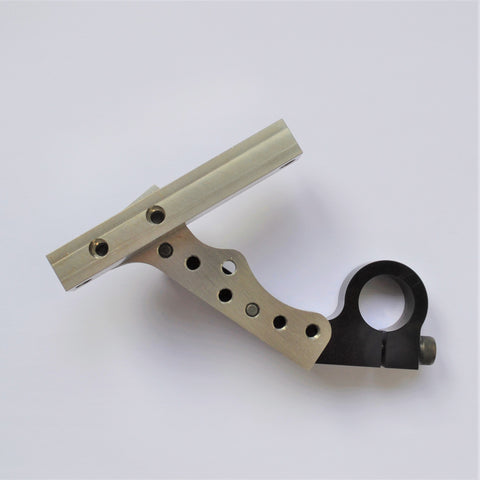

Post Mount disc tab mounting fixture
The mounting block for the Incepi Post mount fixture will soon(July 2020) be available in steel. The current version is made from aluminum.
What sets the Incepi Post mount fixture apart?
The small mounting blocks fit into any rear triangle, no matter how compact the geometry. At the same time the fixture does not obstruct the welding or brazing torch. The mounting blocks do not flex or twist during brazing or welding. The main body of the fixture is also very rigid. The clamp uses an M6 thread, which can be tightened securely. The clamp bore can accommodate dummy axles from various suppliers and still maintain precision and accuracy.This Post Mount Jig requires a 3/4"(0.750" or 19.05mm) precision dummy axle.
The fixture works for 140mm, 160mm, 180mm and 203mm rotors. Both mounting blocks are included with the fixture. One block is for 180mm and 203mm rotors. One is for 140mm and 160mm rotors. They are secured using precision ground shoulder bolts to ensure precise locating.
